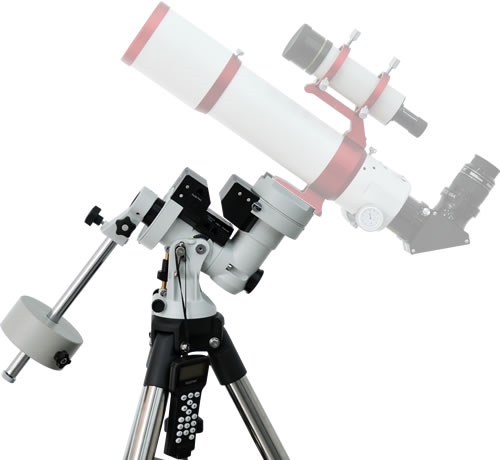

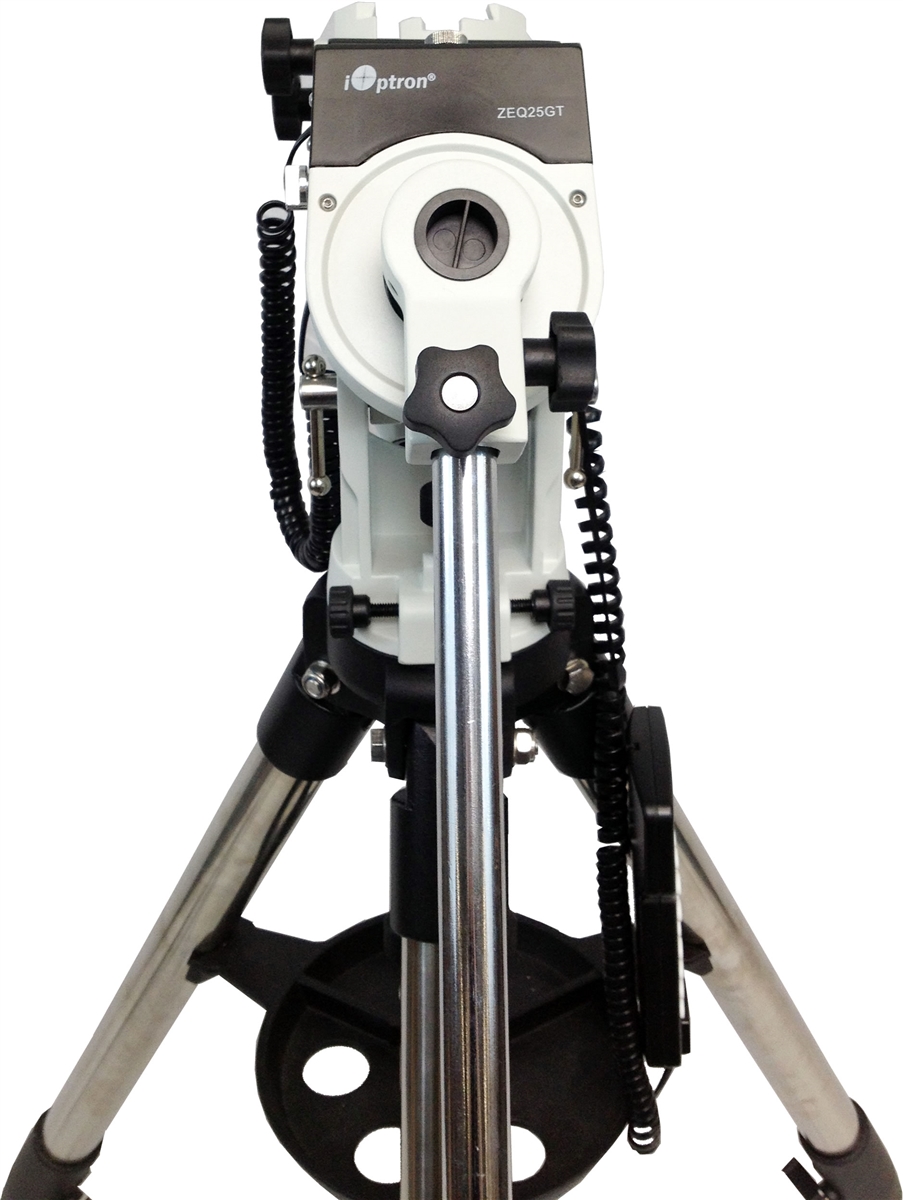

Introducing the iOptron ZEQ25--An extraordinary new innovation in mount design.
The new iOptron "Z" design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Given its payload capacity, this means the "Z" designed mount is unusually light. A nice benefit when setting up at a remote site. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.
The ZEQ25 is equipped with the most advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 59,000 objects. The Go2Nova. Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.
The ZEQ25 -- a new category of viewing and astrophotography!
|
Mount
|
“Z Balanced” Equatorial Mount
| |
Payload
|
27 lb (12.3kg), exclude counterweight
| |
Mount weight
|
10.4
lb (4.7kg)
| |
Payload/Mount weight
|
2.60
| |
Right Ascension worm wheel
|
Φ88mm, 144 teeth
aluminum
| |
Declination worm wheel
|
Φ88mm, 144 teeth
aluminum
| |
Right Ascension axis shaft
|
Φ35mm
steel
| |
Declination axis shaft
|
Φ35mm
steel
| |
Right Ascension bearing
|
Φ55mm
ball
bearing
| |
Declination bearing
|
Φ55mm ball bearing
| |
Worm gears
|
Brass
| |
Motor drive
|
Planetary Gear Reducer DC servo with encoder
| |
Resolution
|
0.14 arc seconds
| |
Transmission
|
Synchronous belt/Gear
| |
Latitude adjustment range
|
0º ~ 60º
| |
Azimuth adjustment range
|
± 10º
| |
GPS
|
Internal 32-channel GPS
| |
Polar Scope
|
AccuAlignTM dark field illuminated
| |
Level indicator
|
Level bubble
| |
Hand Controller
|
Go2Nova® 8408 with 59,000 objects database
| |
PEC
|
PEC
| |
Tracking
|
Automatic
| |
Speed
|
1×,2×,8×,16×,64×,128×,256×,512×,MAX(~4.5º/sec)
| |
Counterweight shaft
|
Φ20mm
| |
Counterweight
|
10.4
lb (4.7kg)
| |
Tripod
|
1.5" Stainless Steel(5kg), optional 2"(8kg)
| |
Dovetail saddle
|
Spring loaded Vixen-style
| |
Power consumption
|
0.2A(Tracking), 0.7A(GOTO)
| |
Power requirement
|
12V DC(9 ~ 15V), 1.5Amp
| |
AC adapter
|
100V ~ 240V (included)
| |
Serial port
|
Yes (on hand controller)
| |
Autoguide port
|
Yes
| |
Firmware upgrade
|
Yes
| |
PC computer control
|
Yes (ASCOM)
| |
Operation temperature
|
-10ºC ~ 40ºC
| |
Warranty
|
Two year limited
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- A new design Center-Balanced equatorial mount for maximum
payload and minimum mount weight
-
Specialized astrophotography mount ideal for entry-level and
intermediate Astro-photographers
-
Payload of 27 lbs (12.3 kg) with the mount-only weight of
10.4 lbs (4.7 kg)
-
Spring loaded gear system with customer adjustable loading
force
-
Gear switches on both R.A. and DEC axes for easy balancing
when disengaged
-
Adjustable counterweight shaft for 0º latitude operation
-
Dual-axis servomotor with enhanced optical encoder for
precise GOTO and accurate tracking
-
iOptron AccuAlignTM calibrated polar scope with dark-field
illumination and easy polar alignment procedure, allowing for fast and accurate
polar alignment
-
Polar alignment routine for those who can’t see the Pole
Star
-
Go2Nova® 8408 controller with Advanced GOTONOVA® GOTO
Technology
-
Periodic error correction (PEC)
-
Integrated ST-4 autoguiding port
-
Built-in 32-channel Global Positioning System (GPS)
-
Serial port for firmware upgrade and computer control
-
Spring loaded Vixen-style saddle
-
Standard 1.5 inch heavy-duty stainless steel tripod (5kg),
optional 2 inch tripod (8kg)
-
Die-cast metal tripod spreader with accessory tray
-
Optional PowerWeightTM rechargeable battery pack
-
Optional hard case for mount available
|
|
|
|
|
|
|
|
|
