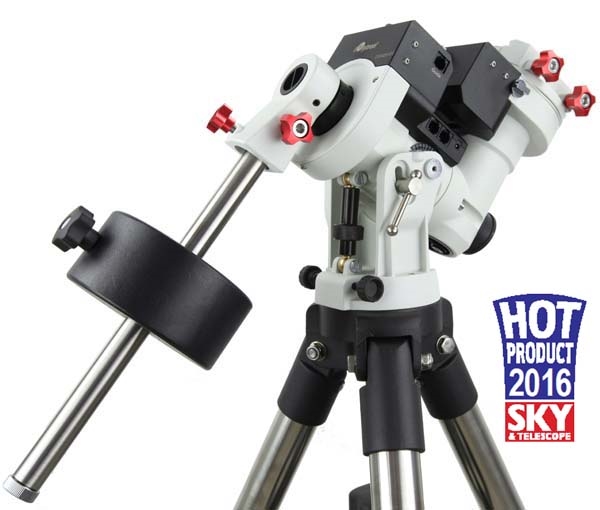

A Mount with PE Less Than 0.3 arcsec rms under $2000 - The New CEM25EC!
Center-balanced Equatorial Mount, a mount whisper quiet and light weight! The mount uses up to 60% less GOTO power consumption than other mounts in category.
With high precision optical encoder system and advanced control technology, the CEM25EC will track a star at a periodic error less than 0.3 arc second, the only mount under $2000!
The "Z" design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Given its payload capacity, this means the "Z" designed mount is unusually light. A nice benefit when setting up at a remote site. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.
The CEM25 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 150,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.
The mount comes standard with 2" heavy duty stainless steel tripod and a hard carrying case.
|
Mount
|
Center-Balanced Equatorial Mount
|
|
Payload
|
27 lb (12.3kg), exclude counterweight
|
|
Mount weight
|
10.4
lb (4.7kg)
|
|
Payload/Mount weight
|
2.60
|
|
Right Ascension worm wheel
|
Φ88mm, 144 teeth
aluminum
|
|
Declination worm wheel
|
Φ88mm, 144 teeth
aluminum
|
|
Right Ascension axis shaft
|
Φ35mm
steel
|
|
Declination axis shaft
|
Φ35mm
steel
|
|
Right Ascension bearing
|
Φ55mm
ball
bearing
|
|
Declination bearing
|
Φ55mm ball bearing
|
|
Worm gears
|
Brass
|
|
Motor drive
|
1.8 º stepper motor, 128X microdivision
|
|
Resolution
|
0.14 arc seconds
|
|
Transmission
|
Synchronous belt
|
|
Latitude adjustment range
|
0º ~ 60º
|
|
Azimuth adjustment range
|
± 10º
|
|
GPS
|
Internal 32-channel GPS
|
|
Polar Scope
|
AccuAlignTM dark field illuminated
|
|
Level indicator
|
Level bubble
|
|
Hand Controller
|
Go2Nova® 8408with 150,000+ objects database
|
|
PEC
|
Real Time PEC
|
|
Periodic Error
|
<0.3 arcsec RMS
|
|
Tracking
|
Automatic
|
|
Speed
|
1×,2×,8×,16×,64×,128×,256×,512×,MAX1440X)
|
|
Counterweight shaft
|
Φ20mm
|
|
Counterweight
|
10.4
lb (4.7kg)
|
|
Tripod
|
2" Stainless Steel(8kg)
|
|
Dovetail saddle
|
Spring loaded Vixen-style
|
|
Power consumption
|
0.35A(Tracking),0.6A(GOTO)
|
|
Power requirement
|
12V DC(9 ~ 15V), 1.5Amp
|
|
AC adapter
|
100V ~ 240V (included)
|
|
Serial port
|
Yes (on hand controller)
|
|
Autoguide port
|
Yes
|
|
Firmware upgrade
|
Yes
|
|
PC computer control
|
Yes (ASCOM)
|
|
Operation temperature
|
-10ºC ~ 40ºC
|
|
Warranty
|
Two year limited
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- A new design Center-Balanced equatorial mount for maximum payload and minimum mount weight
-
Specialized astrophotography mount ideal for entry-level and
intermediate Astro-photographers
- High precision optical encoder system and advance control technology for accurate tracking
- PE<0.3 arc second RMS
-
Payload of 27 lbs (12.3 kg) with the mount-only weight of
10.4 lbs (4.7 kg)
-
Spring loaded gear system with customer adjustable loading
force
-
Gear switches on both R.A. and DEC axes for easy balancing
when disengaged
-
Adjustable counterweight shaft for 0º latitude operation
-
Stepper motor with low power consumption
- New electronics and control adapted from CEM60
-
iOptron AccuAlignTM calibrated polar scope with dark-field
illumination and easy polar alignment procedure, allowing for fast and accurate
polar alignment
-
Polar alignment routine for those who can’t see the Pole
Star
-
Go2Nova® 8408 controller with Advanced GOTONOVA® GOTO
Technology
-
Integrated ST-4 autoguiding port
-
Built-in 32-channel Global Positioning System (GPS)
-
Serial port for firmware upgrade and computer control
-
Spring loaded Vixen-style saddle
-
Standard 2 inch heavy-duty stainless steel tripod (8kg)
-
Die-cast metal tripod spreader with accessory tray
- Hard case included
-
Optional PowerWeightTM rechargeable battery pack
-
Optional StarFi WiFi adaper for full function control via SmartPhone/Tablet/Computer,
|
|
|
|
|
|
|
|
|
