HEM15 EQ SWG hybrid + iPolar

Home > Products > Strain Wave Mounts > Hybrid Equatorial Mounts (HEM) >

tripod and scope not included

Alternative Views:

Introductory Price $1,498.00

Availability: Usually ships in 2 business days
Product Code: H152A

Extended Warranty:

Standard Warranty [Add 0.00]
One Year [Add $79.00]
Two Year [Add $149.00]
Three Year [Add $209.00]

Description

Technical Specs

Support Documents

Introducing the HEM15, the latest addition to iOptron’s revolutionary hybrid strain wave drive mounts. This light weight tiny titans will deliver an astronomy experience like never before. With a mount head weighing 5.5lbs, it can carry an 18 lbs payload without needing a counterweight. Applying iOptron’s multi-decade experience creating precision mounts, the HEM15 brings this vision to reality.

Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM15 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break allows the mount safely stop even after an abrupt power loss.

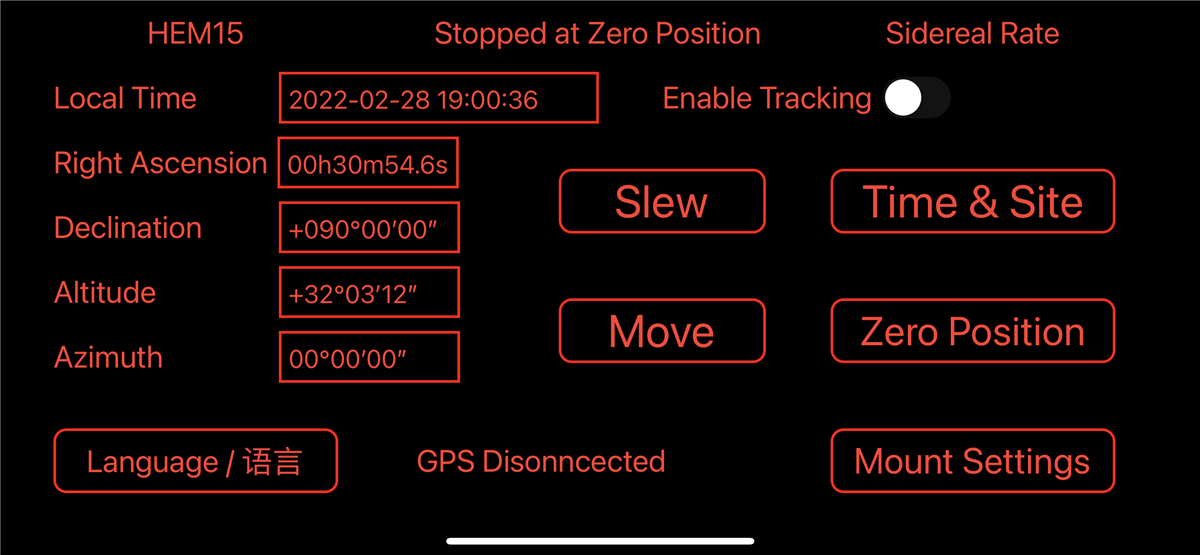

A HEM15 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Pi device via INDI driver.

Recent review on the HEM15 SWG Mount by Jerry Lodriguss on Astro Pix

Features

Advanced strain wave gear technology
Payload capacity of 18 lbs (~8.2 kg) with the mount weight of 5.5 lbs (2.5 kg)
CNC machined
Unique friction brake to safely stop movement during a planned or unplanned power interruption
360 second gear period
Go2Nova® hand controller with ~212,000 object database
Internal iPolar electronic polar scope for easy and accurate polar alignment
No moving, no wrapping cable system
Vixen dovetail saddle
Built in zero position search and locator
Integrated ST-4 autoguiding port
Built-in Wi-Fi (via hand controller)
USB port for firmware upgrade and computer control

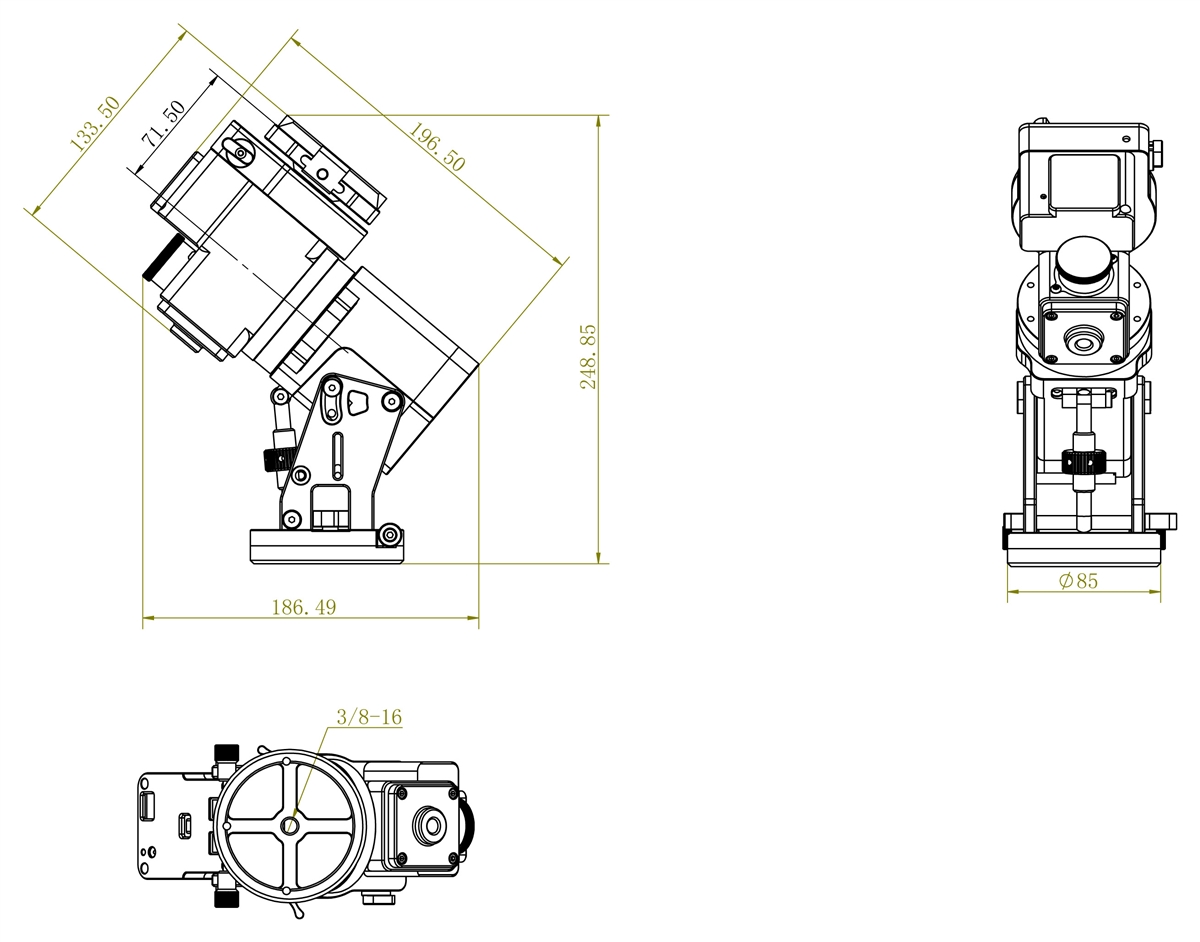

3/8"-16 mounting hole for your camera tripod

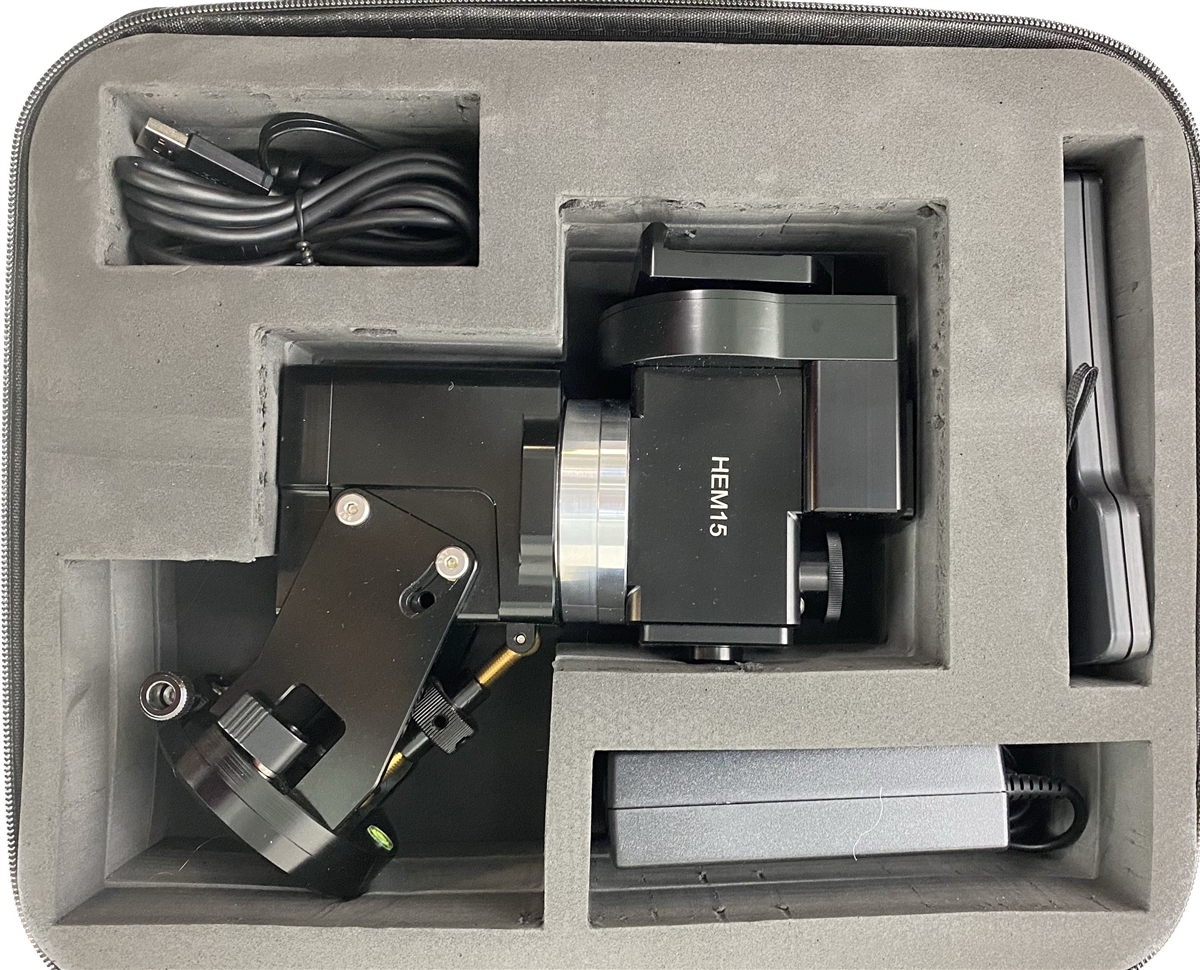

Soft carrying case
Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-05)
Optional external iGuider for autoguiding (#3360-HEM)
Two year warranty
